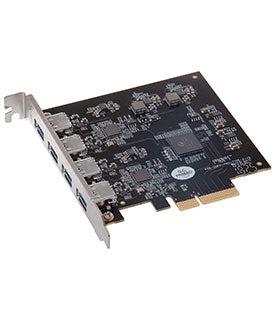

Sonnet Technologies Allegro Pro USB 3.2 4-Port SuperSpeed+ Charging PCI Express 2.0 Card, Thunderbolt compatible

$319.99 $349.99 Save $30

Tax includedShipping calculated at checkout

Sonnet SKU: STIUSB3PRO4P10E

Available Now!
Overview Description Warranty Search
Australian owned
We are an Australian owned and operated company. You are protected by Australian consumer law when you buy here. Buy overseas and you give up your consumer protection.
Real office
We are local just like you! We are a real business located in Pymble Sydney. Yes, we answer the phone take responsibility for your enquiry. Yes, you can click and collect on our website.
Lifetime Warranty
Our RAM warranty is simple. Lifetime. If it does not work, we will replace it. No exceptions. We have had the same warranty for over 20 years.
20+ years in business
Upgradeable began selling memory in the year 2000. We are one of the original computer ecommerce websites in Australia. You are buying from a company guaranteed to be here in the future to service your warranty.
Guaranteed to work
Our upgrades are tested and exceed your computer manufacturer's specifications. That is why we can guarantee compatibility, we know it will work. If you are unhappy in any way, return the product within 14 days for a refund.
Free installation guide
Our products ship with the 8 page Upgradeable installation guide booklet. Professionally produced, and outlines everything you need for a stress free upgrade. If there is a problem, our technical support numbers are printed in the book for easy access.
No payment surcharges
There are no payment surcharges. There are no hidden costs in our pricing. We accept Visa, Mastercard, American Express, Paypal, Apple Pay and Google Pay. No 3% foreign currency bank fee when you buy locally in Australia.
Local technical support
We have technicians in our office to help you at any time. Most customers never need to use this service, but it is there if you need it. We love helping customers, solving problems and answering questions.
Overnight Shipping
You want your upgrade fast? We use the premium Express Post service. It is an overnight service to all major regions with a tracking number. This premium service is only $12.90 and it is insured, so if it does get lost or stolen you get another one.

Allegro Pro
SuperSpeed+ USB 3.2 PCI Express 2.0 Card

Mac / PC / USB 3.2 / PCIe


Add Four USB-A 10Gbps Ports Connections to Your System
2X the Performance as USB 3.0 and USB 3.1 Gen 1 Connections
The fastest SSD-based USB 3.2 Gen 2 drives now available can transfer data at 800 MB/s—many are bus-powered, too. But, most desktop computers (including many new models) feature old-generation USB interfaces that can’t support that performance, and may not provide enough power to enable those bus-powered drives to function. Break through the bottleneck—install Sonnet’s Allegro Pro Type-A USB 3.2 PCIe(1) card in your Mac Pro® tower, Windows® PC, or Linux computer with PCIe slots; or Thunderbolt™ to PCIe card expansion system to support your fast USB drives at maximum performance.
Two Gen 2 Controllers, Four USB-A Ports
Featuring two 10Gbps USB 3.2 Gen 2 controllers and four USB-A ports, the Allegro PCIe card supports the fastest USB drives available, yet provides the most common connection type for peripheral devices.
The Speed and Power
Connected to a single USB 3.2 Gen 2 SSD RAID device, Sonnet’s Allegro PCIe card supports data transfers up to 800 MB/s—transfers complete in half the time compared with using a USB 3.1 Gen 1 or USB 3.0 adapter card! Made possible through the use of dual controllers, with two connected drives, each port supports simultaneous 660 MB/s transfers. With four drives connected, each port supports simultaneous 300 MB/s transfers!
No Auxiliary Power Needed
Ordinary USB-A cards require the connection of a separate power connector. The Allegro draws the power it needs from the slot it’s installed in to power connected drives, enabling you to install the card in any compatible computer or Thunderbolt expansion system that doesn’t have these power connectors available.
Independent Power Regulation for Each Port
Ordinary USB-A cards can provide poor power regulation through their ports. The Allegro PCIe card protects each port from power glitches on adjacent ports—such as when a hard drive spins up after connection—preventing auto-disconnects of already-connected drives.
Resettable Fuses
Unlike ordinary USB-A cards, the Allegro features a resettable fuse on each port to protect the card and your computer should a cable or peripheral fail. Resetting a tripped fuse is simple— just shut down and restart your computer.
Add USB 3.2 to Your Thunderbolt Mac
Got a Mac with a Thunderbolt connection, but no PCIe slot? The Allegro is ideal for use in Sonnet’s Thunderbolt 2 and Thunderbolt 3 to PCIe card expansion systems, including Echo Express™ and xMac™ desktop and rackmount systems.
Perfect for the Extra Slot in Your Multi-Slot Thunderbolt System
Have a multi-slot Thunderbolt 2 or Thunderbolt 3 to PCIe card expansion system with an open slot? Installing an Allegro Pro Type-A USB 3.2 PCIe card is an excellent way to inexpensively add four SuperSpeed USB-A 10Gbs ports to your computer.
Easy Installation, Broad Device Support
The full-height Allegro PCIe card installs easily into any PCIe x4 (mechanical) or larger slot. The Sonnet card features hot-pluggable and hot-swappable device connection support with automatic device configuration, and works with all USB-IF compliant USB peripherals.
